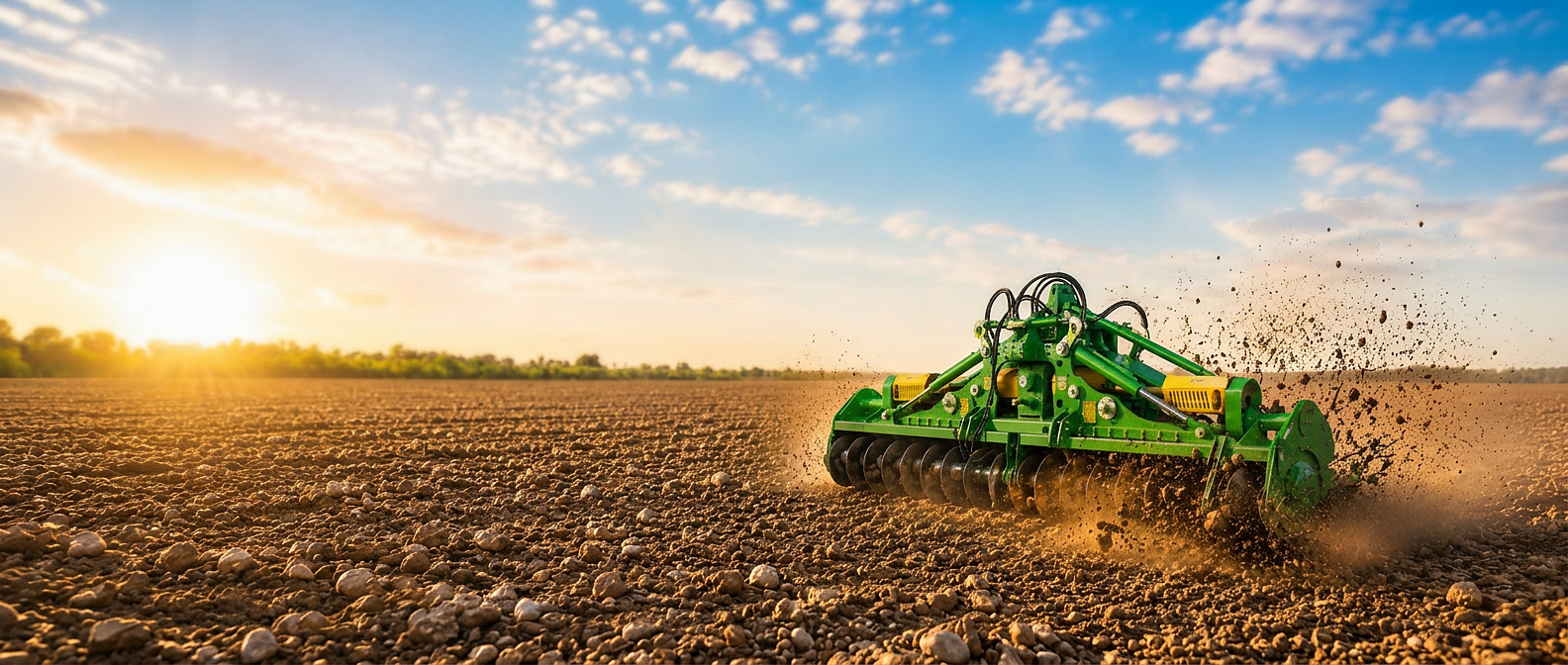

WeCan rotavator preparing a fine seedbed at sunset

ROTAVATORS · SEEDBED PREPARATION

Rotavators

PTO-driven rotary tillage for a fine, chemical-free seedbed in one pass. The deepest line WeCan builds — from a 34 HP single-gear unit to super heavy-duty rigs for 150+ HP tractors, plus mountain, paddy, multipurpose, and offset variants for every field.

5.1–10 ft1.55–3.05 m working width

34–175 HPtractor class

11 seriesheavy-duty to mobile

Dual-frameanti-distortion build

Request a Quote → Folding Rotavators →

Why a WeCan rotavator

A fine seedbed in a single pass

Rotary tillage breaks, mixes, and levels in one operation — no chemicals, no multiple passes. WeCan's dual-frame builds and reinforced gearboxes hold precision across the widest span of field types in the lineup.

One pass, no chemicals

Break, mix, and level in a single operation — no burn-down spray, no second trip across the field.

Depth you dial in

PTO-driven blades cut to the depth you set, independent of tractor weight or ground speed.

Residue worked in, not piled

Crop residue is chopped and mixed into the top layer instead of being raked into windrows.

Fewer hours per acre

One pass instead of two or three — fewer engine hours and less diesel across the season.

One line, every field

Eleven series, matched to your ground

Heavy-duty TGW and RFC for 100–150+ HP tractors and large acreage.
MGWH / MGW mountain units and SGWH / SGW paddy units for slopes and wet ground.
LSGW super multi gear — a 150 HP-rated gearbox in a compact paddy frame, vibration-free flange mounting.
DGWH / DGW multipurpose and SG single-gear for versatile mid- and small-farm work.
MV mobile offsets up to 380 mm for orchards, greenhouses, and precision rows.

Specifications

Find your series

Eleven series, 55 models. Pick the work type that matches your ground and tractor — each panel opens with its working width and required PTO horsepower.

Working width8.5–10.0 ft

Tractor100–150+ HP

SeriesTGW · RFC

TGW Series · Super Heavy-Duty

TGW — Super Heavy-Duty Rotavator

120+ HP class, reinforced dual-frame for large-scale, high-power tillage. Working width 8.5–10.0 ft.

Model	Tilling width (ft)	Weight (lb)	Tractor (HP)
WR2600 TGW	8.52600 mm	2,4251100 kg	120–130
WR2850 TGW	9.42850 mm	2,6451200 kg	125–150
WR3050 TGW	10.03050 mm	2,8651300 kg	150 or more

RFC Series · Heavy-Duty

RFC — Heavy-Duty Rotavator

Hypoid drive and spring-rod linkage for rough, sloping, and mountainous ground. Working width 9.4–10.0 ft.

Model	Tilling width (ft)	Weight (lb)	Tractor (HP)
WR2850 RFC	9.42850 mm	2,2051000 kg	100–120
WR3050 RFC	10.03050 mm	2,3151050 kg	110–150

Working width6.7–10.0 ft

Tractor70–175 HP

SeriesMGWH · MGW

MGWH Series · High-Clearance Mountain

MGWH — High-Clearance Mountain Rotavator

Elevated PTO input and dedicated gearbox for high-clearance tractors on slopes. Working width 6.7–10.0 ft.

Model	Tilling width (ft)	Weight (lb)	Tractor (HP)
WR2050 MGWH	6.72050 mm	1,565710 kg	75–90
WR2150 MGWH	7.12150 mm	1,585720 kg	80–100
WR2350 MGWH	7.72350 mm	1,720780 kg	85–100
WR2500 MGWH	8.22500 mm	1,785810 kg	95–120
WR2600 MGWH	8.52600 mm	1,895860 kg	100–120
WR2850 MGWH	9.42850 mm	2,005910 kg	115–150
WR3050 MGWH	10.03050 mm	2,115960 kg	120–175

MGW Series · Mountain

MGW — Mountain Rotavator

High-strength frame with rear spring-rod linkage that follows ground contours. Working width 6.7–10.0 ft.

Model	Tilling width (ft)	Weight (lb)	Tractor (HP)
WR2050 MGW	6.72050 mm	1,545700 kg	70–90
WR2150 MGW	7.12150 mm	1,565710 kg	75–100
WR2250 MGW	7.42250 mm	1,700770 kg	80–100
WR2350 MGW	7.72350 mm	1,720780 kg	85–110
WR2500 MGW	8.22500 mm	1,765800 kg	90–120
WR2600 MGW	8.52600 mm	1,875850 kg	95–120
WR2850 MGW	9.42850 mm	1,985900 kg	115–150
WR3050 MGW	10.03050 mm	2,095950 kg	120–175

Working width5.7–9.2 ft

Tractor45–115 HP

SeriesDGWH · DGW

DGWH Series · High-Clearance Multipurpose

DGWH — High-Clearance Multipurpose Rotavator

Large gearbox and elevated PTO shaft; paddy and dry field, wet-condition seals. Working width 7.5–9.2 ft.

Model	Tilling width (ft)	Weight (lb)	Tractor (HP)
WR2300 DGWH	7.52300 mm	1,300590 kg	85–95
WR2500 DGWH	8.22500 mm	1,475670 kg	95–110
WR2800 DGWH	9.22800 mm	1,630740 kg	100–115

DGW Series · Multipurpose

DGW — Multipurpose Rotavator

Versatile paddy/dry-field workhorse across a wide width and horsepower range. Working width 5.7–8.2 ft.

Model	Tilling width (ft)	Weight (lb)	Tractor (HP)
WR1750 DGW	5.71750 mm	1,100500 kg	45–60
WR1850 DGW	6.11850 mm	1,125510 kg	50–70
WR1950 DGW	6.41950 mm	1,215550 kg	52–75
WR2050 DGW	6.72050 mm	1,235560 kg	55–80
WR2150 DGW	7.12150 mm	1,255570 kg	60–80
WR2300 DGW	7.52300 mm	1,300590 kg	85–95
WR2500 DGW	8.22500 mm	1,475670 kg	95–110

Rice belt · Gulf Coast

Purpose-built for paddy — the rice-belt rotavator

Sealed rotor shafts, high-clearance frames, and a 150 HP-rated super gear — three series built for standing water and puddled ground. From the Texas and Louisiana rice belt to the flooded fields of Latin America, this is the tillage WeCan builds for.

Working width5.1–9.8 ft

Tractor34–150 HP

SeriesSGWH · SGW · LSGW

SGWH Series · High-Clearance Paddy

SGWH — High-Clearance Paddy Rotavator

Sealed rotor shaft and elevated PTO for wet, high-clearance paddy work. Working width 8.2–9.8 ft.

Model	Tilling width (ft)	Weight (lb)	Tractor (HP)
WR2500 SGWH	8.22500 mm	1,365620 kg	65–100
WR2800 SGWH	9.22800 mm	1,410640 kg	80–100
WR3000 SGWH	9.83000 mm	1,500680 kg	85–150

SGW Series · Paddy

SGW — Paddy Rotavator

Special sealing system protects the rotor shaft from water and contaminants. Working width 6.6–9.8 ft.

Model	Tilling width (ft)	Weight (lb)	Tractor (HP)
WR2000 SGW	6.62000 mm	1,170530 kg	45–70
WR2150 SGW	7.12150 mm	1,190540 kg	53–80
WR2300 SGW	7.52300 mm	1,325600 kg	55–85
WR2500 SGW	8.22500 mm	1,365620 kg	65–100
WR2800 SGW	9.22800 mm	1,410640 kg	80–100
WR3000 SGW	9.83000 mm	1,500680 kg	85–150

LSGW Series · Super Multi Gear

LSGW — Super Multi Gear Rotary

A 150 HP-rated super gear in a compact paddy frame. Vibration-absorbing dual upper frame, regular-interval flange mounting, and an automatic rolling rear cover. Working width 5.1–7.1 ft.

Model	Tilling width (ft)	Weight (lb)	Tractor (HP)
WR1550 LSGW	5.11550 mm	780353 kg	34–40
WR1650 LSGW	5.41650 mm	800364 kg	35–42
WR1750 LSGW	5.71750 mm	845383 kg	35–45
WR1850 LSGW	6.11850 mm	860390 kg	40–50
WR1950 LSGW	6.41950 mm	870395 kg	42–65
WR2000 LSGW	6.62000 mm	935425 kg	45–70
WR2150 LSGW	7.12150 mm	970440 kg	45–80

Body 68.9–92.4" wide (1750–2348 mm) · 37.4" (950 mm) · 46.5" (1180 mm) tall. Flanges 6–9 and blades 36–54 by model. Source: WECAN GLOBAL CO., LTD.

Conversion gear	Blade shaft (540 rpm PTO)	Blade shaft (1000 rpm PTO)
19–16	134 rpm	248 rpm
18–17	150 rpm	278 rpm
17–18	168 rpm	312 rpm
16–19	189 rpm	350 rpm

Four-step conversion gear — match blade shaft speed to soil condition and ground speed without changing the tractor's PTO setting.

Working width5.1–6.6 ft

Tractor34–80 HP

SeriesSG · MV

SG Series · Single-Gear Multipurpose

SG — Single-Gear Multipurpose Rotavator

Proven hypoid single-gear drive; dependable across various soils, 34 HP up. Working width 5.1–6.6 ft.

Model	Tilling width (ft)	Weight (lb)	Tractor (HP)
WR1550 SG	5.11550 mm	815370 kg	34–40
WR1650 SG	5.41650 mm	840380 kg	36–45
WR1750 SG	5.71750 mm	880400 kg	38–45
WR1850 SG	6.11850 mm	905410 kg	40–50
WR2000 SG	6.62000 mm	950430 kg	45–55

MV Series · Mobile / Offset

MV — Mobile / Offset Rotavator

Lateral offset up to 380 mm for orchards, greenhouses, and precision rows. Working width 5.1–6.1 ft.

Model	Tilling width (ft)	Weight (lb)	Tractor (HP)
WR1550 MV	5.11550 mm	990450 kg	36–50
WR1650 MV	5.41650 mm	1,015460 kg	38–60
WR1750 MV	5.71750 mm	1,060480 kg	42–70
WR1850 MV	6.11850 mm	1,100500 kg	44–80

iDimension guideA · B · HShowHide▾

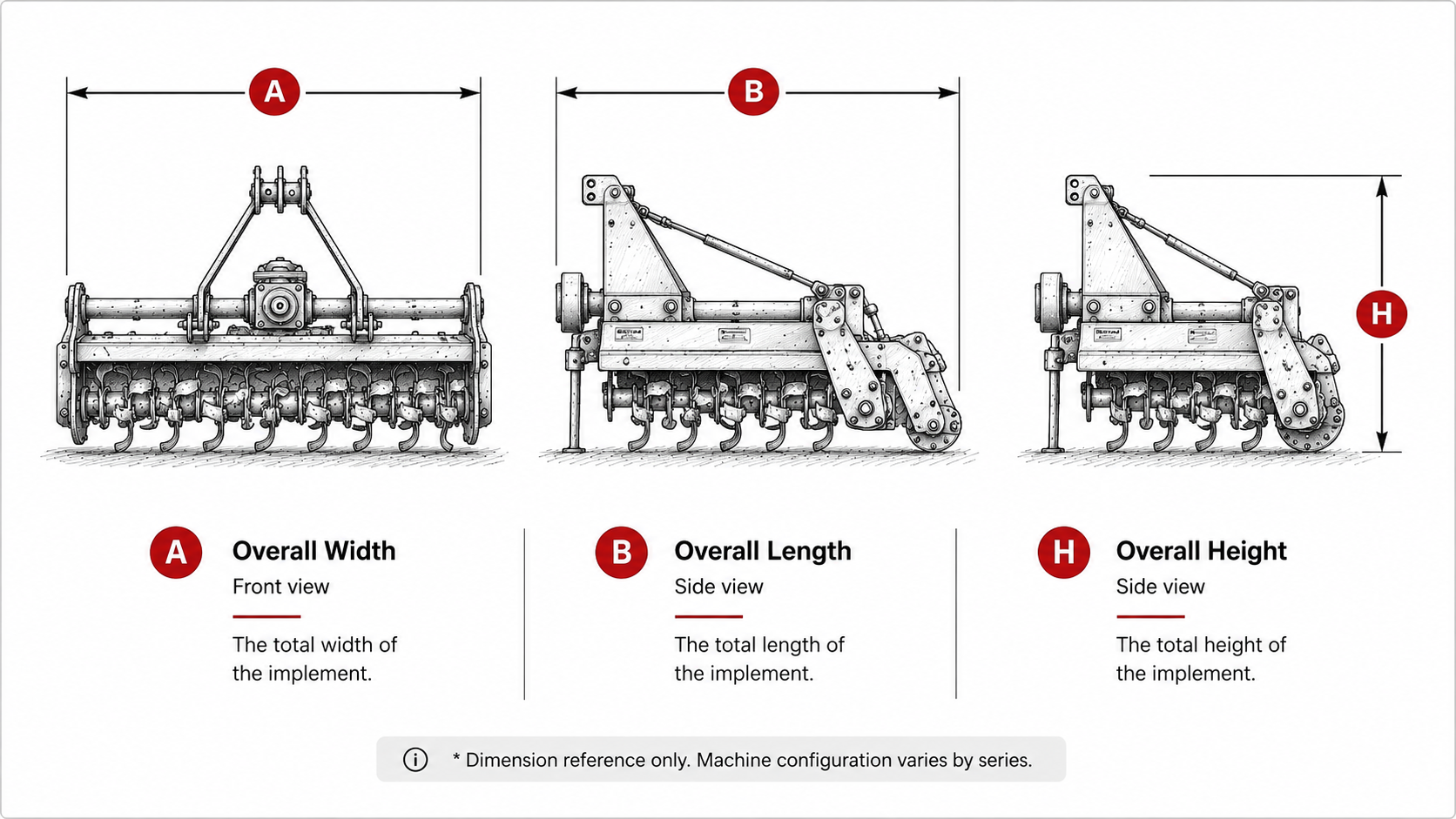

Dimension legend for WeCan standard rotavators: overall width (A), overall length (B), and overall height (H)

Applies across the standard fixed rotavators (TGW, RFC, MGW / MGWH, DGW / DGWH, SGW / SGWH, LSGW, SG). The MV mobile / offset series adds lateral offset and is dimensioned separately; folding rotavators (THWL, PFW, RFW) use their own legend.

See it work

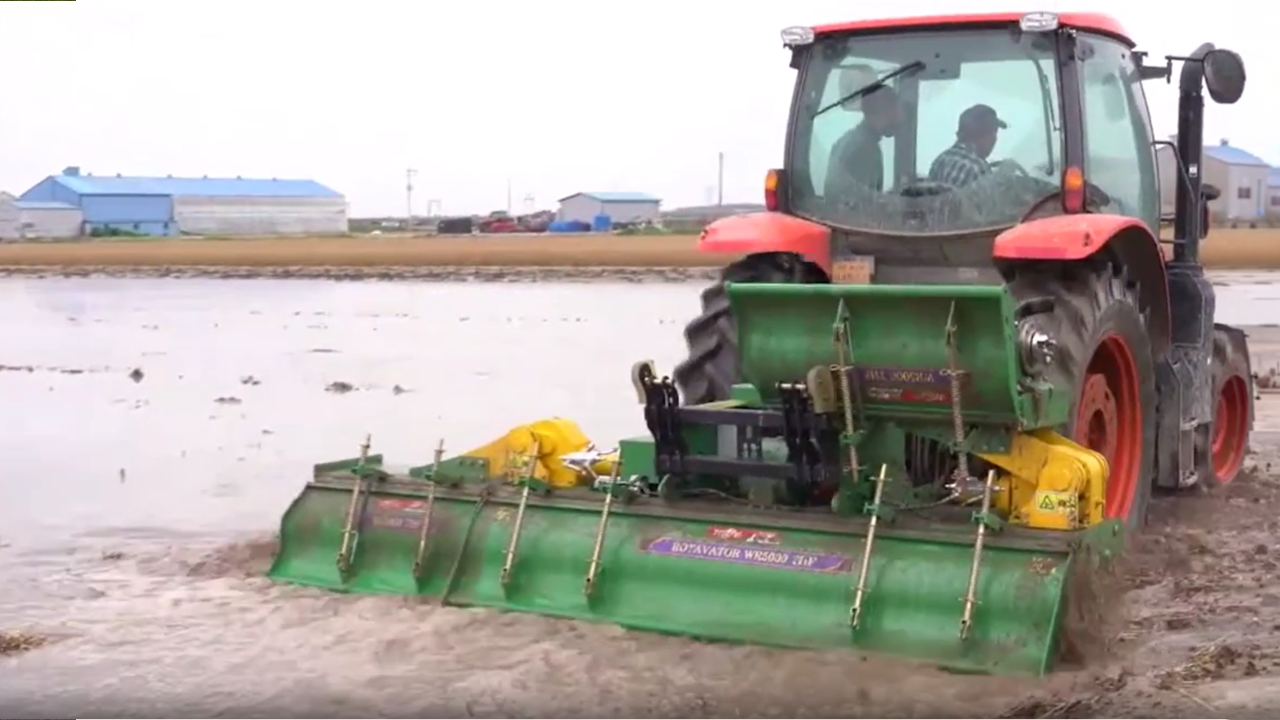

One pass, level ground

A WeCan rotavator working real ground — blades engaged, soil pulverized and leveled in a single pass.

Field footage · WECAN GLOBAL CO., LTD.

Built for the field

Engineered to hold precision under load

01
Fine, even seedbed
Optimized blade arrangement pulverizes soil uniformly for clean, chemical-free ground.
02
Dual-frame durability
Reinforced upper frame prevents twisting and distortion under heavy, sustained loads.
03
Mountain & paddy ready
High-clearance, spring-rod, and sealed-shaft variants handle slopes, rough ground, and wet paddy.
04
Every field size
From a compact 34 HP single-gear unit to 150+ HP super heavy-duty rigs — one line covers the farm.

Match a rotavator to your tractor

Tell us your PTO horsepower and field type — our Houston team will confirm the right series and working width, with parts and support coordinated through Houston.
