Disc Plows
Primary tillage that turns and breaks heavy, compacted ground in fewer passes. Every WeCan disc plow runs 22-inch discs off a driven gearbox — three families for every field size and tractor, from compact paddy work to 5-meter folding rigs.
Turn and break heavy ground in fewer passes.
A disc plow inverts and shatters the heavy, compacted soil that tines and towed harrows only skim. Every WeCan disc plow drives its 22-inch discs from a cast center gearbox — so the cut comes from power, not just tractor weight and momentum.
Inverts, not just scratches
Turns the profile over so residue, weeds, and trash get buried instead of dragged along.
Power to the cut
Driven discs bite the hard pans that towed harrows skid across.
Fewer passes to a seedbed
Heavy ground opens up in one primary pass, leaving less work for the rotavator behind it.
Three drive types, one result
Chain, gear, or folding — the same tillage outcome whether you run 35 HP or 120 HP.
From compact paddy to 5-meter folding
- Chain-type WDP works wet paddy and small tractors from 35 HP; gear-type WDPG covers the mid-size workhorse range.
- Folding WDPF opens to 5 m for large acreage, then folds to 3 m for road transport.
- Every family runs 22-inch discs driven from a cast center gearbox — power to the cut.
- Group-sealed gears and bearings survive long use in water paddy and Gulf-Coast clay.
Find your family
Three families, 11 models — all on 22-inch discs. Pick the drive type that matches your ground and tractor; each panel opens with its working width and required PTO horsepower.

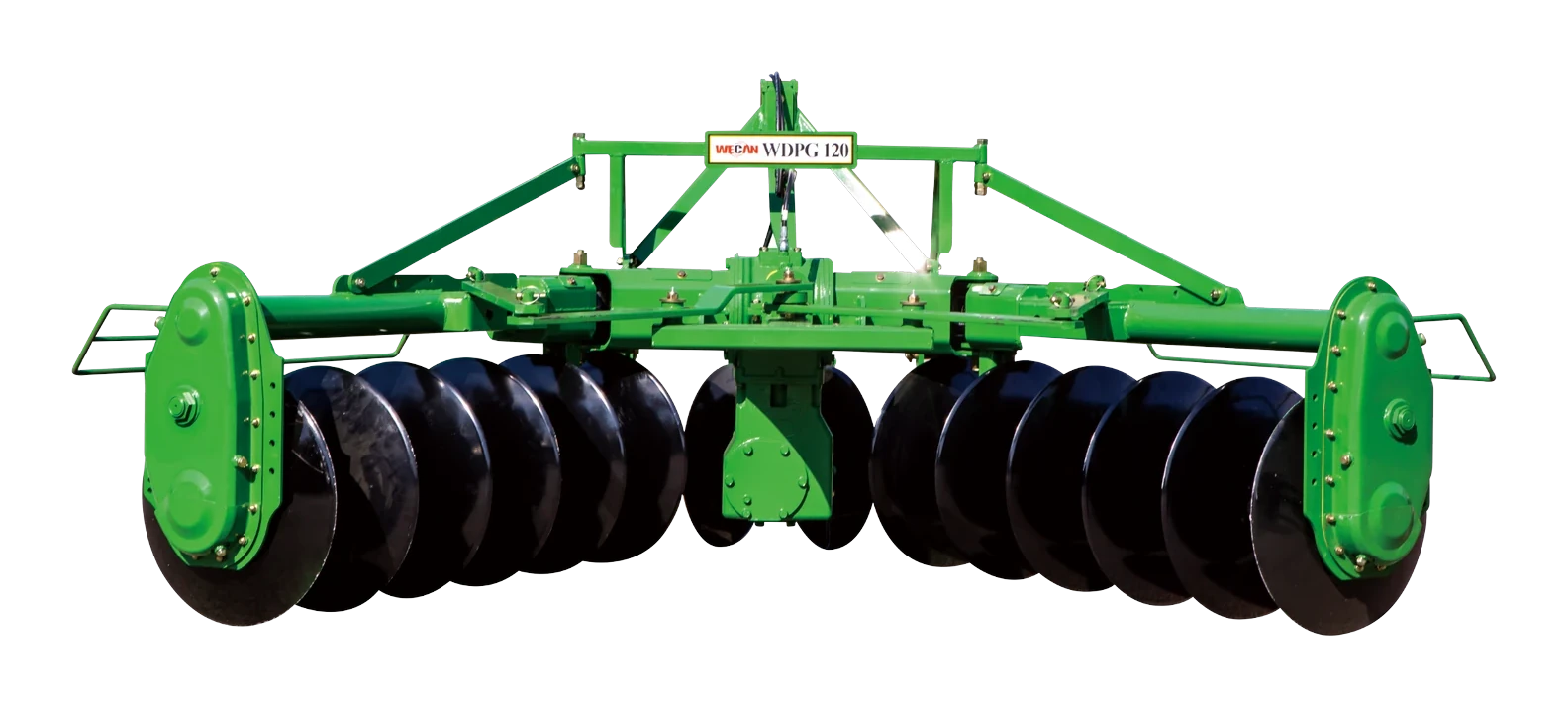

WDPG — Gear-Type Disc Plow
A spiral-bevel center gearbox drives the discs directly — powerful, precise crushing on hard and compacted ground. The core mid-size primary-tillage plow.
| Model | Tilling width (ft) | Weight (lb) | Discs | Length (mm) | Height (mm) | Tractor (HP) | PTO / Disc (rpm) |
|---|---|---|---|---|---|---|---|
| WDPG80 | 7.52300 mm | 1,740790 kg | 8 + 2 | 1505 | 1320 | 65–90 | 540 / 75 |
| WDPG100 | 9.32830 mm | 1,895860 kg | 10 + 2 | 1505 | 1320 | 95–110 | 540 / 75 |
| WDPG120 | 11.13370 mm | 2,050930 kg | 12 + 2 | 1505 | 1320 | 110 or more | 540 / 75 |
WDP — Chain-Type Disc Plow
A fully sealed, chain-driven plow built for wet paddy and smaller tractors — excellent traction and stability in mud, from 35 HP up.
| Model | Tilling width (ft) | Weight (lb) | Discs | Length (mm) | Height (mm) | Tractor (HP) | PTO / Disc (rpm) |
|---|---|---|---|---|---|---|---|
| WDP40 | 5.61700 mm | 1,145520 kg | 4 + 2 | 1505 | 1320 | 35–50 | 540 / 75 |
| WDP60 | 5.91800 mm | 1,410640 kg | 6 + 2 | 1505 | 1320 | 45–55 | 540 / 75 |
| WDP80 | 7.52300 mm | 1,500680 kg | 8 + 2 | 1505 | 1320 | 65–90 | 540 / 75 |
| WDP100 | 9.32830 mm | 1,675760 kg | 10 + 2 | 1505 | 1320 | 90–110 | 540 / 75 |
| WDP120 | 11.13370 mm | 1,765800 kg | 12 + 2 | 1505 | 1320 | 110 or more | 540 / 75 |
WDPF — Folding Disc Plow
Two-stage hydraulic folding for working widths up to 5 m, then folded to 3 m for the road — built for high-horsepower tractors and large acreage.
| Model | Tilling width (ft) | Folded W (mm) | Weight (lb) | Discs | Length (mm) | Folded H (mm) | Tractor (HP) |
|---|---|---|---|---|---|---|---|
| WDPF4000 | 13.14000 mm | 3000 | 3,1951450 kg | 14 + 2 | 1420 | 2430 | 100 or more |
| WDPF4500 | 14.84500 mm | 3000 | 3,3051500 kg | 16 + 2 | 1490 | 2700 | 110 or more |
| WDPF5000 | 16.45000 mm | 3000 | 3,4151550 kg | 18 + 2 | 1560 | 2980 | 120 or more |
iDimension guideA · B · HShowHide▾
Applies across all three disc plow families (WDPG, WDP, WDPF); the folding WDPF adds a folded width and folded height, listed in its panel. All families run 22-inch discs. PTO 540 rpm / disc 75 rpm (WDPF: disc 102 rpm). Specifications subject to change without notice. Source: WECAN GLOBAL CO., LTD. product catalog.
Driven discs, turned ground
A WeCan disc plow inverting heavy soil — discs powered from the center gearbox, not dragged.
Field footage · WECAN GLOBAL CO., LTD.
Engineered to hold precision under load
- 01
22-inch driven discs
High-grade 22-inch discs shed soil instead of packing it — deep, uniform cutting through residue, mud, and hard pans.
- 02
Cast center gearbox
A cast-in-one center gearbox and dual side gears drive the discs with power — crushing comes from the driveline, not just tractor weight.
- 03
Sealed for wet ground
Special group seals protect gears and bearings through long use in water paddy and Gulf-Coast clay.
- 04
Depth & angle adjustable
Set disc depth and angle to match the crop and soil — one tool covering many primary-tillage jobs.
Need help matching the right model to your tractor and field conditions?
Availability and final configuration confirmed by quote — our Houston team will match the right family, width, and disc count, with parts and support coordinated through Houston.
