HR Power Harrow
An ATOS-steel power harrow built to dig deeper than a standard rotavator — turning, cutting, and leveling a clean, plantable seedbed in one pass. Heavy-duty tines and a rear roller hold depth.
Why a power harrow earns its keep
Where a rotavator chops, the HR digs deeper and levels — vertical rotary blades mix the soil for a fast seed-setting environment, finished clean by a rear crushing roller.
Deeper than a rotavator
Vertical tines work below rotavator depth without inverting the soil profile.
Seedbed ready to plant
Cut, mix, and level in one pass; the roller leaves a firm, even surface a drill can follow.
Stones stay down
Vertical rotation pushes stones downward rather than pulling them up to the surface.
Moisture held in
One pass turns less soil to air, keeping seedbed moisture where the seed needs it.
Deeper than a rotavator — and tougher
- Vertical rotary blades mix soil for the optimal seed-growth environment, digging deeper and finishing neater than a rotavator.
- ATOS steel, a solid frame, and a precision-forged rotor shaft minimize shaking — which helps save fuel.
- Pin-structure rotary blades detach easily, keeping maintenance and repair simple and low-cost.
- First developed and produced in Korea by WeCan, refined over years for demanding field conditions.
Find your width
One series, two working widths — sized for medium to large tractors.
HR — Power Harrow
Vertical rotary tines work below rotavator depth and mix without inverting the profile; the rear crushing roller levels the same pass into a firm, plantable seedbed. ATOS steel, a solid frame, and a precision-forged rotor shaft hold that precision under load — and pin-structure blades come off by hand.
| Model | Tillage width (ft) | Weight (lb) | Blades | Flange | Width (mm) | Length (mm) | Height (mm) | Tractor (HP) |
|---|---|---|---|---|---|---|---|---|
| WR 2500 HR | 8.02450 mm | 4,5852,080 kg | 16 | 8 | 2730 | 1530 | 1340 | 90–135 |
| WR 3000 HR | 10.03050 mm | 5,2252,370 kg | 20 | 10 | 3330 | 1530 | 1340 | 120–200 |

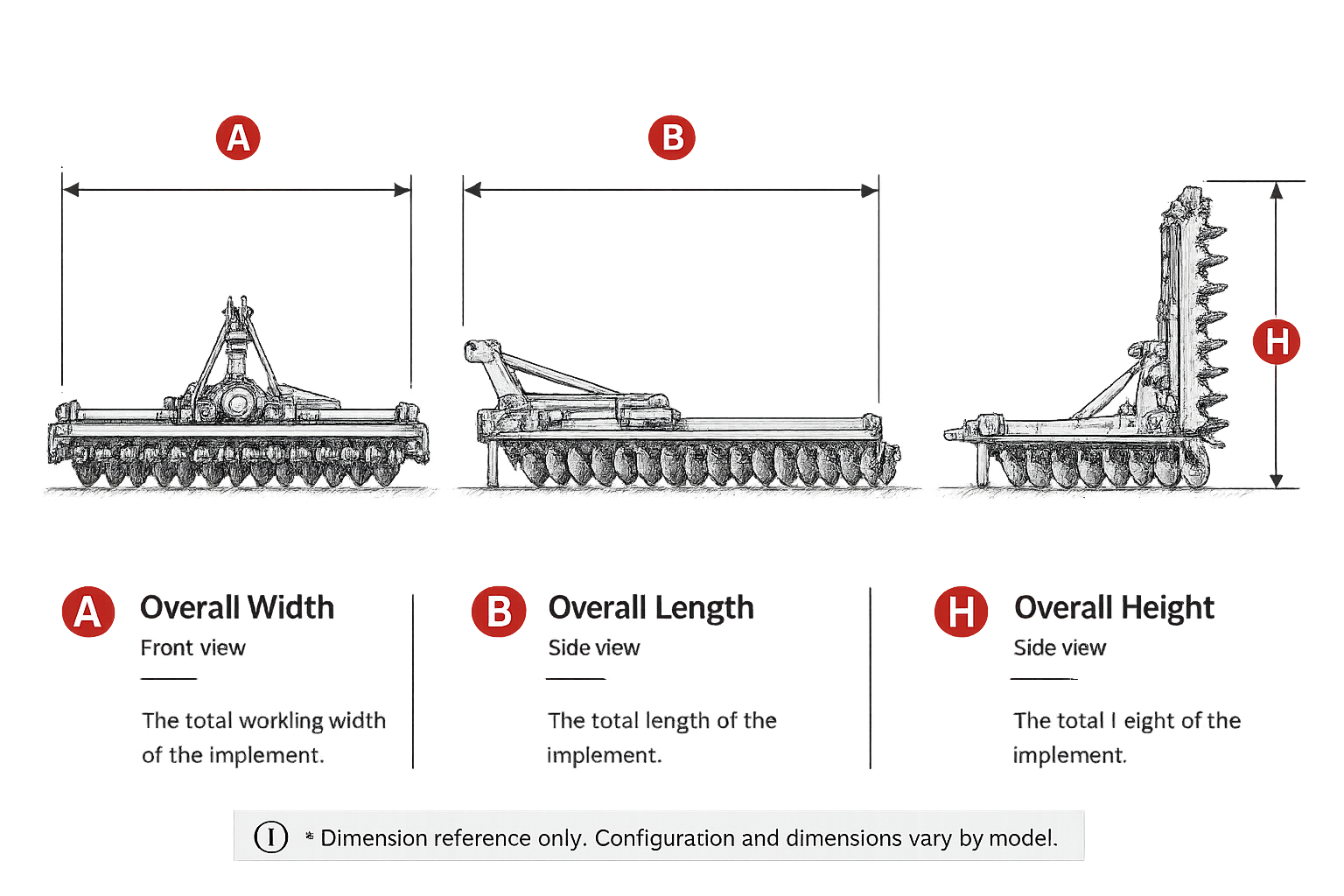

iDimension guideA · B · HShowHide▾
Applies across the HR series (WR 2500 HR, WR 3000 HR). ATOS steel grade is being confirmed with WeCan HQ. Specifications subject to change without notice. Source: WECAN GLOBAL CO., LTD. product catalog.
Engineered to hold precision under load
- 01
ATOS-steel build
Industry-leading durability from ATOS steel — built robust for hard, heavy soils.
- 02
Forged gears & shaft
Forged drive shaft and spur gears transmit power solidly and minimize shaking, which saves fuel.
- 03
Easy blade separation
Detachable pin-structure blades make maintenance and repair quick and low-cost.
- 04
Rear crushing roller
The rear roller levels cleanly in the same pass, leaving a ready, even seedbed.
Spec an HR for your seedbed
Tell us your tractor and acreage — our Houston team will match the right width, with parts and support coordinated through Houston.
