Front Loader

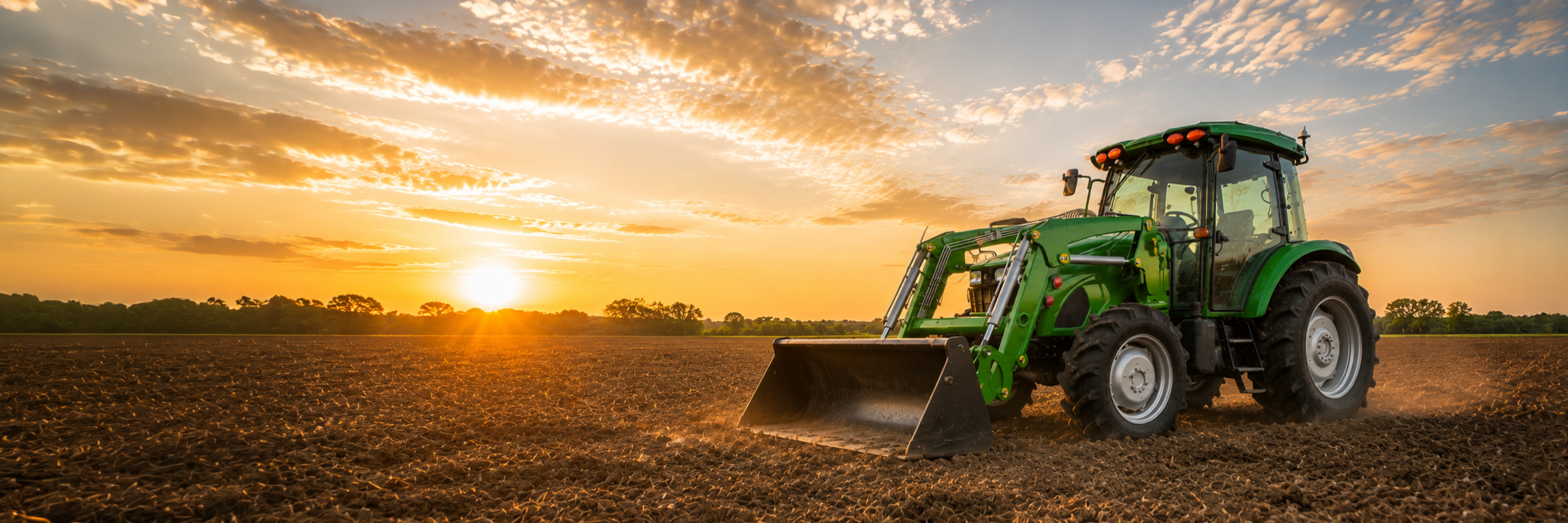

A tractor-mounted front-end loader with a compact, clean design and strong lift — engineered for daily work across diverse jobs: bales, soil, gravel, feed, and pallets. Excellent maneuverability and dependable power, season after season.
NEW LINEThe implement that works every day, not just at harvest
A front loader turns the tractor you already own into the farm’s yard machine. Bales, soil, gravel, feed, pallets — the work that has to happen every day, without buying a second machine or paying a second operator.
One machine, all year
2,214 lb to full height. Bales, soil, gravel, feed, and pallets off the same tractor.
No second operator
The tractor is already in the yard. The loader removes the trip to the forklift — and the wage that comes with it.
Matched to your tractor
Our Houston team confirms the right frame fit and hydraulic flow before the quote goes out.
Breaks the packed pile
4,542 lbf of breakout and 4.7" below grade — the bucket cuts under the pile instead of skating over it.
Boom, cylinders, and bucket — built as one
- Twin lift cylinders (35×60 mm bore and rod, 725 mm stroke) raise the boom; a matched 729 mm bucket cylinder works the attachment.
- Hydraulic lines run along the boom to the attachment coupling — nothing left exposed to the pile.
- 772 lb bare frame keeps the front axle usable; the 57" bucket adds 213 lb.
- 0.28 m³ (9.9 cu.ft) bucket, 52.9° dump and 43.4° rollback.
Loader specifications
Single-bucket configuration. US units first; metric in gray.
| Ref | Description | Specification (US · metric) |
|---|---|---|
| A | Maximum lift height | 101.0"2743 mm |
| B | Clearance, attachment level | 96.7"2455 mm |
| C | Clearance, attachment dumped | 78.6"1997 mm |
| D | Reach at maximum height (45°) | 13.0"331 mm |
| E | Maximum dump angle | 52.9° |
| F | Reach with attachment on ground | 72.2"1835 mm |
| G | Attachment rollback angle | 43.4° |
| H | Digging depth below grade | 4.7"120 mm |
| L | Depth of attachment (to back of inner shell) | 20.1"512 mm |
| M | Height of attachment | 19.5"496 mm |
| N | Depth of attachment (to pivot pin) | 28.2"717 mm |
| — | Lift capacity to max height (at pivot pin) | 2,214 lb1,006 kg |
| — | Breakout force (at pivot pin) | 4,542 lbf2,065 kgf |
| — | Bucket rollback force at ground line | 2,504 lbf1,138 kgf |
| — | Lift cylinder | 1.4"×2.4"×28.5"×17.1 ST35×60×725×435 ST mm |
| — | Bucket cylinder | 1.4"×2.4"×28.7"×14.3 ST35×60×729×363 ST mm |
| — | Bucket width | 57"1458 mm |
| — | Bucket weight | 213 lb96 kg |
| — | Approx. weight (without bucket) | 772 lb350 kg |
| — | Bucket capacity | 9.9 cu.ft0.28 m³ |
Capacity and force ratings measured at the pivot pin per HQ spec sheet. Specifications subject to change without notice. Source: WECAN GLOBAL CO., LTD.
Engineered for daily duty
- 01
Twin lift cylinders
35×60 mm bore and rod on a 725 mm stroke, in a pair — lifting 2,214 lb to 101" measured at the pivot pin.
- 02
52.9° dump / 43.4° rollback
Dumps clean over a trailer wall, and carries a full bucket without spilling back down the loader arms.
- 03
4.7" below grade
The bucket cuts under the pile instead of riding over it. 4,542 lbf breakout, 2,504 lbf rollback at the ground line.
- 04
772 lb bare frame
Light enough to keep the front axle usable. 0.28 m³ bucket at 213 lb, 57" wide.
Spec a front loader for your tractor
Tell us your tractor make, model, and HP — our Houston team will confirm the right loader fit and lift capacity, with parts coordinated through Houston.
