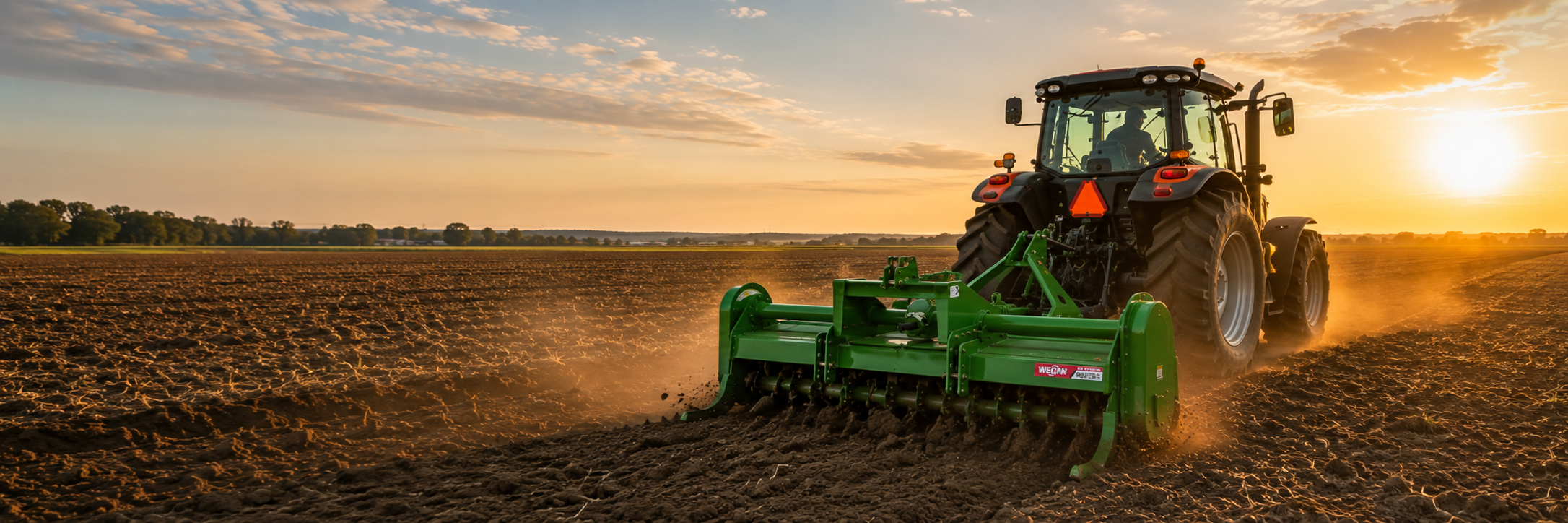

Deep Plowing Rotavator
A deep-tillage rotavator built to break hard subsoil layers and rebuild soil structure — stable and precise even in continuous deep work. Compact enough for greenhouses and confined rows, from 35 HP up.
Break the hard layer, rebuild the soil
Years of tillage and traffic compact the soil just below working depth. That layer stops water, stops roots, and stops yield — and no surface rotavator reaches it.
Reaches what the rotavator can’t
Blades work below the compacted layer that surface rotavators and harrows leave untouched.
Water goes down, not sideways
Fracturing the hard pan restores drainage — less ponding, less runoff, less topsoil washed off the field.
Roots get their depth back
An open profile lets roots chase moisture downward — the crop holds on longer before it feels a dry spell.
Fits inside the greenhouse
From 35 HP and 1.55 m: real deep tillage where the big equipment simply does not fit.
Deep tillage for hard, tired ground
- Heavy-duty blades break the compacted layer that surface rotavators and harrows leave behind.
- An integrated high-strength rotor shaft holds true and stable through continuous deep plowing.
- Hypoid gearing keeps power delivery efficient and steady under deep working loads.
- Compact widths open up greenhouses, vinyl houses, and confined rows to real deep tillage.
Pick your build class
DP for compact 35–55 HP work, DPW for wider, heavier 60–100 HP deep tillage. Each panel opens with its working width and required PTO horsepower.
DP — Compact Deep Tillage
1.55–1.65 m on 36–42 blades, for 35–55 HP tractors working greenhouses and tight rows.
| Model | Tilling width (ft) | Overall W (mm) | Length (mm) | Height (mm) | Weight (lb) | Flange | Blades | Tractor (HP) |
|---|---|---|---|---|---|---|---|---|
| WR1550 DP | 5.11550 mm | 1750 | 840 | 1320 | 990450 kg | 6 | 36 | 35–45 |
| WR1650 DP | 5.41650 mm | 1850 | 840 | 1320 | 1,060480 kg | 7 | 42 | 43–55 |
DPW — Wide Deep Tillage
1.85–2.15 m on 48–60 blades, for 60–100 HP tractors working open field.
| Model | Tilling width (ft) | Overall W (mm) | Length (mm) | Height (mm) | Weight (lb) | Flange | Blades | Tractor (HP) |
|---|---|---|---|---|---|---|---|---|
| WR1850 DPW | 6.11850 mm | 1950 | 840 | 1320 | 1,170530 kg | 8 | 48 | 60–80 |
| WR2150 DPW | 7.12150 mm | 2346 | 840 | 1320 | 1,235560 kg | 10 | 60 | 80–100 |
PTO 540 rpm. All four models share the same 840 mm length and 1320 mm height. Specifications subject to change without notice. Source: WECAN GLOBAL CO., LTD. product catalog.
Built not to flex at depth
- 01
Heavy-duty deep blades
Sized to fracture compacted soil below normal working depth — not just to stir the surface.
- 02
Integrated rotor shaft
One-piece high-strength shaft resists distortion under continuous deep load — which is exactly where built-up shafts fail.
- 03
Hypoid gear drive
Hypoid gearing keeps power delivery efficient and steady right when the load is heaviest. 540 rpm PTO.
- 04
One hitch geometry
All four models share 840 mm length and 1320 mm height — only width and flange count change.
Spec a deep plow for your ground
Tell us how deep the hard layer sits and the tractor you’ll run — our Houston team will match DP or DPW and the right width, with parts and support coordinated through Houston.
